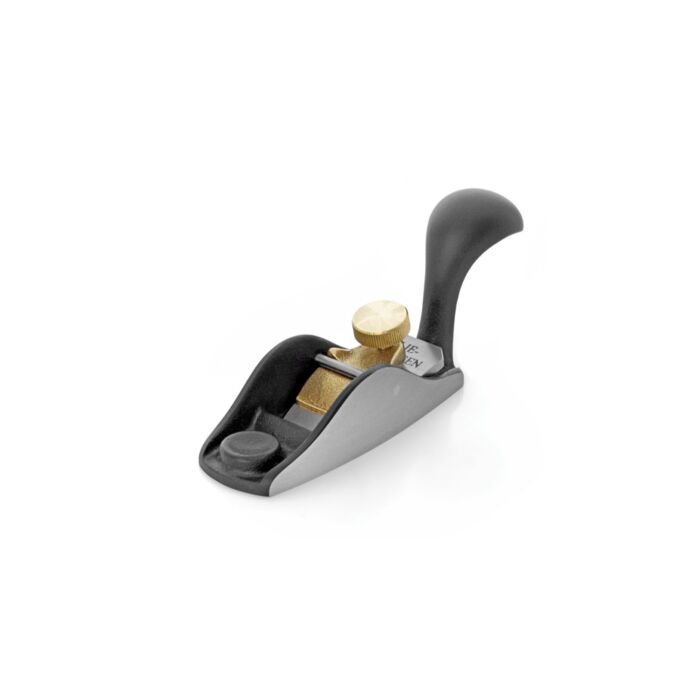

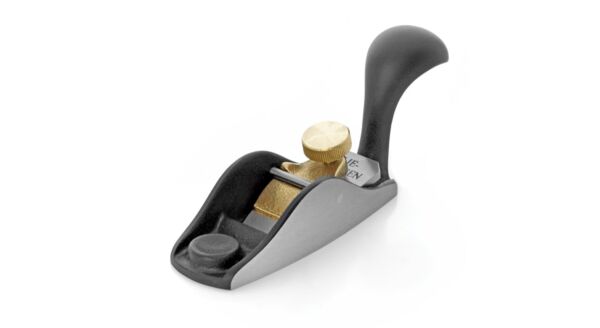

Lie-Nielsen Palm Plane Model Makers No. 100, flat

Codice
505890
70,74 €
Non Disponibile

Model Maker's Block Plane

Questa deliziosa piccola pialletta ad angolo basso si adatta perfettamente al palmo della mano ed è molto facile da usare. Ideale per tutti i tipi di smussature e tagli su pezzi di piccole dimensioni.

Lunghezza 11,11 cm per 3,17 cm di larghezza. Lama 2,22 cm di larghezza per 3,17 mm di spessore. Peso 210 g.

Visualizza altri dettagli prodotto
Dettagli prodotto

USE & CARE INSTRUCTIONS

Our Model Maker's Block Plane is a miniature workhorse that will fit in some tight situations better than any other Block Plane. This delightful, small low-angle tool fits snugly in the palm of your hand, and is ideal for all sorts of chamfering and trimming jobs. Blade is 7/8" wide and 1/8" thick.  Plane is 4 7/8" long and 1¼" wide. Weight is 8 oz.

Geometry: The blade sits in the body at 12º.

Blade Sharpening: The blade comes ready to use. Slight additional honing will increase performance. A secondary bevel of up to 5 degrees helps achieve a razor edge quickly.  This also improves edge life in hardwoods.

Blade Adjustment:  Slightly loosen the pressure of the cap and advance or retract the blade. Tighten the thumbscrew.

Materials:  We use Ductile Iron for the bodies. These castings are fully stress-relieved, a process that removes inherent stresses and ensures that the tool will remain flat and true. The cap is Manganese Bronze.

The blade is A-2 Tool Steel hardened to Rockwell 60-62, cryogenically treated and double tempered. Our heat-treating technique ensures that the blade will take and hold a very fine edge for a long time.  After heat-treating the blade is fully surface ground on the top, back and cutting edge, giving a smooth, flat surface that will take a mirror finish very quickly. The 1/8" thickness provides solid, chatter-free cutting.

Maintenance: The sole is finished flat to a tolerance of less than .001". Depending on how much use your tool gets, an occasional light sanding with 400 or finer wet/dry paper on a flat surface will keep the sole in as-new condition.
